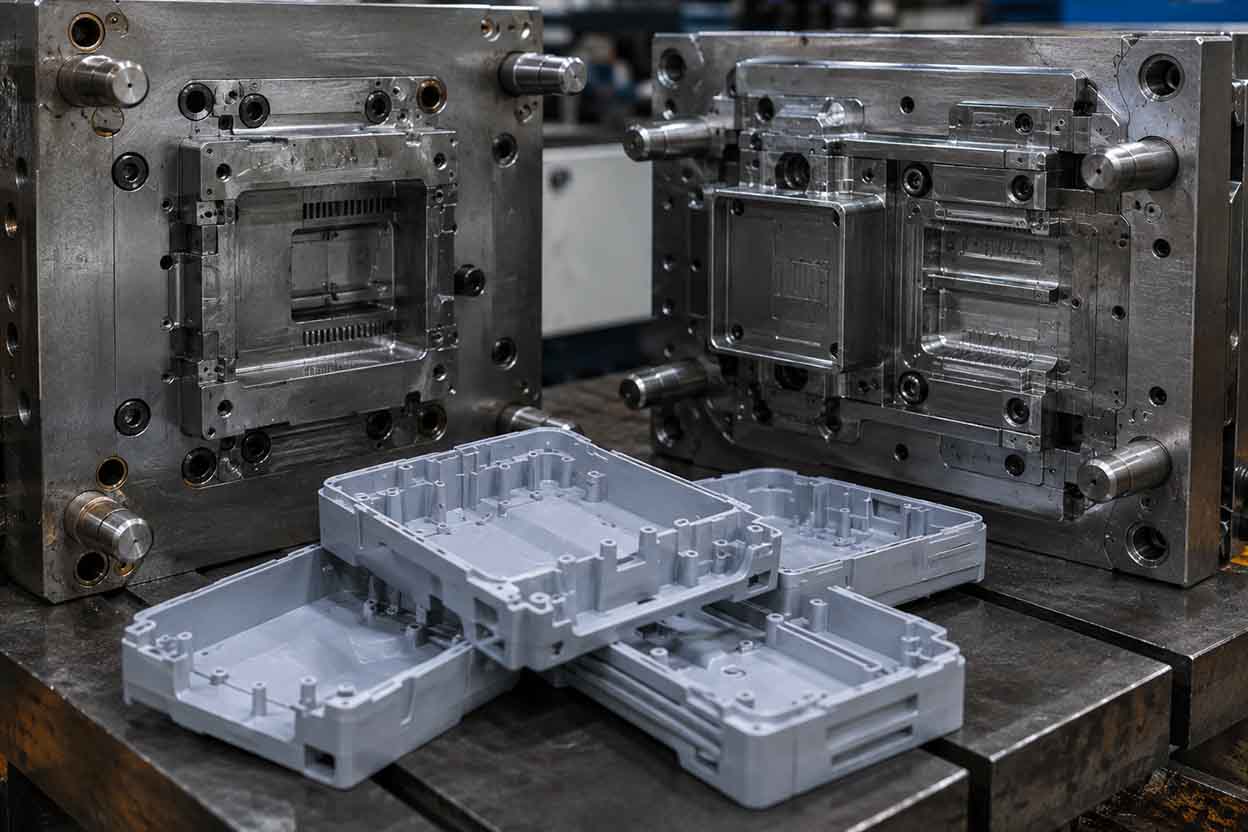

Injection mold development is the process of turning a plastic part design into a working mold that can produce parts repeatedly. It involves more than machining a cavity into steel. Part geometry, material behavior, gate location, cooling, ejection, and expected production requirements all need to be considered before the mold enters production.
For custom plastic projects, early mold planning can help reduce later modifications and make the transition from prototype to molded part more efficient.
What Happens During Injection Mold Development?
The first stage of injection mold development is usually a review of the part design. Wall thickness, ribs, bosses, draft angles, undercuts, holes, and cosmetic surfaces can all affect how the mold is designed. If a part contains deep cavities or complex side features, additional sliders, lifters, or other mold structures may be required. The goal of this review is not simply to decide whether the part can be molded. It is also to identify features that may create filling, cooling, ejection, or tooling difficulties.
Mold Structure Follows Part Geometry
Plastic mold design must match both the shape of the component and the way it will leave the mold.
Parting lines, gate locations, ejector positions, and core structures are therefore important decisions. Poor placement may affect appearance, dimensional stability, or part removal.
Cooling also needs attention because different sections of the mold may lose heat at different rates. Large wall thickness changes can lead to uneven shrinkage or longer cooling times.
Trial Molding Helps Find Problems Early
After the tooling is completed, trial molding is used to evaluate how the mold and part behave under actual processing conditions. The first samples may reveal issues such as:
-Incomplete filling
-Sink marks
-Warpage
-Flash
-Difficult ejection
-Surface marks
-Dimensional variation
These results do not always mean the entire mold needs to be rebuilt. Some problems may be improved through process adjustment, while others may require local tooling modifications. Trial molding is therefore an important part of injection molding tooling development rather than simply a final inspection step.
Production Requirements Should Be Considered Early
A mold intended for prototype quantities may not require the same structure as one designed for repeated long-term production. Expected quantity, plastic material, part appearance, dimensional requirements, and secondary operations can all influence the tooling approach. Buyers should provide these requirements as early as possible so that the mold is developed around the intended application rather than only around the CAD geometry.
Conclusion
Injection mold development connects product design with repeatable plastic production. Good results depend on coordinated decisions about part geometry, mold structure, gates, cooling, ejection, trial molding, and process adjustment.
Identifying these factors before production can reduce unnecessary tooling changes and help create a more practical molding process.
